engineered for beverage and dairy plants — non-absorbent walls and ceilings that survive caustic CIP washdowns without staining,
harboring residue, or breeding mold in humid fill rooms.
Dairy and beverage processing puts wall materials through a chemistry test no residential surface could pass: caustic and acid cleaning cycles, hot sanitizing rinses, milk-fat and sugar splash, and rooms that sit at high humidity for hours at a time. Tiles fail at the grout, painted block absorbs the washdown water, and ordinary metal liners corrode around the chemical lines. SKD Food-Grade Gelcoat FRP Panels are built for that regime — a smooth, non-porous FRP surface with no open texture where milk protein, lactose, or syrup residue can lodge and ferment between cleanings.
The panel is a dedicated food-grade SKU in our Gelcoat Panels line: the same fiberglass-reinforced polyester substrate, the same dimensional and weathering performance as our standard panels, with a surface formulation that has been independently tested by SGS against FDA 21 CFR food-contact requirements. That means you can specify food-grade surfaces where product or process requires them, without changing any other panel specification on the project.
The panel is built from two bonded layers:
| Specification | Value |
|---|---|
| Skin Thickness | 0.8–5.0mm |
| Max Width | 3,400mm |
| Roll Length | Up to 120m |
| Operating Temperature | -40°C to +140°C |
| UV Resistance | ≥99% |
| Warranty | 10–15 years |
| Resin | Unsaturated polyester resin |
| Color | RAL color matching available |
| Surface Finish | Glossy / Wood Grain / Trefoil / Bubble Texture / Pearl / Leather |
| FDA Compliance | SGS tested per FDA 21 CFR 177.1900 — Report No. SHAMLP2005617401 (PASS) |

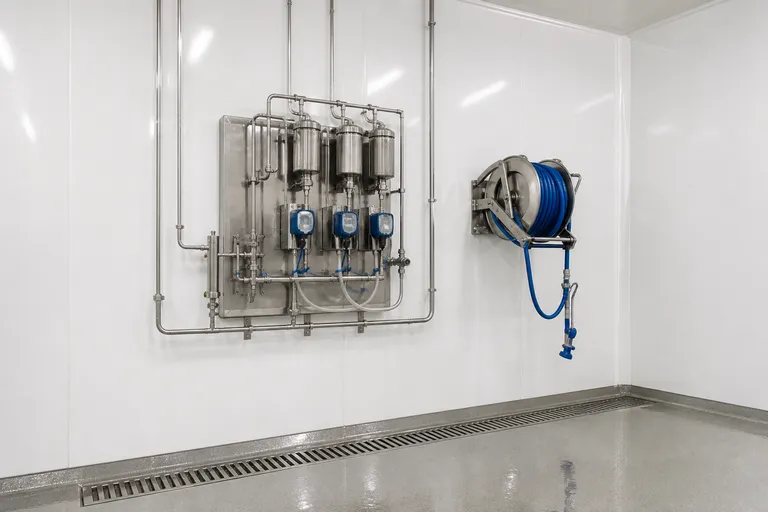

The non-porous gelcoat face tolerates the repeated caustic and acid washdown cycles used in clean-in-place regimes, plus hot sanitizing rinses — without staining, softening, or surface degradation.
With no texture, seams, or absorbent edges, the surface gives dairy fats, lactose, and high-sugar syrup nothing to cling to — a wipe-down returns it to a clean, odor-free state between CIP runs.

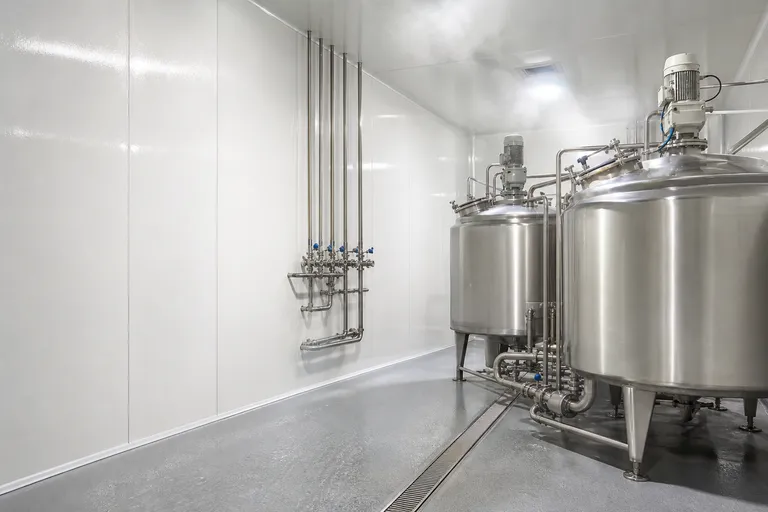

The panel performs in the condensation-heavy environments of filling lines and dairy process rooms, where porous materials support mold growth on ceilings and behind equipment.
Food-contact suitability of these Food-Grade FRP Gelcoat Panels is documented by SGS third-party testing per FDA 21 CFR 177.1900 (Report No. SHAMLP2005617401, PASS) — a verifiable basis for your spec sheet, not a self-declared claim.
Panels up to 3,400mm wide cover large wall and ceiling runs with fewer seams than tile or sheeting systems — and every joint is a potential harborage point you can eliminate.
A: The Food-Grade line is engineered to FDA food-contact compliance for use in food-contact environments such as walls, ceilings and structural surfaces. Compliance is documented by SGS testing per FDA 21 CFR 177.1900 (total extractives, Report No. SHAMLP2005617401, PASS); the regulatory basis for resinous and polymeric coatings is 21 CFR 175.300, whose full text is published on the eCFR. For applications involving direct and continuous product contact, contact our team to confirm the correct specification for your specific process.
A: No. The gelcoat is formulated for exactly these environments — repeated chemical washdown and hot sanitizing cycles are routine in dairy and beverage plants, and our warranty covers the panel for 10–15 years. Chemical-resistance documentation for your specific CIP regime is available on request.
A: It is a dedicated SKU — same substrate, dimensions and weathering performance as our standard line, but the surface formulation has been independently tested and verified for FDA food-contact compliance. This lets you specify food-grade surfaces only where your process requires them.
A: Food-Grade and Antibacterial panels are separate dedicated SKUs. Food-Grade is the choice where FDA food-contact compliance governs the specification; Antibacterial Gelcoat Panels add independently tested surface protection for environmental surfaces where bioburden control matters. Many projects combine the two — a dairy plant may line process walls with Food-Grade and specify antibacterial panels for staff facilities and locker areas.
A: The FDA food-contact standard is the reference most commonly requested in North American projects. If your export market requires a regional certification — for example in Southeast Asia or the Middle East — tell us your destination and we will outline which documentation we can provide.
